Technocom
ZKTECO

ZK-178S


Price : $5,000.00 /1

Color :

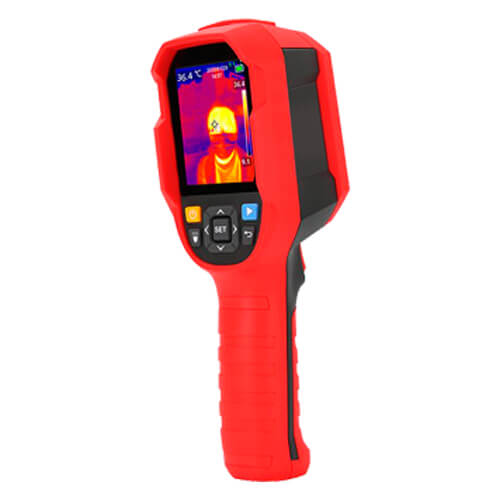

ZK-178S is an infrared thermal imager equipped with an audio alarm. It combines surface temperature measurement and real-time thermal image detection. The traditional infrared thermometers can only measure the temperature of each accessory one by one. When compared with the conventional infrared thermometers, ZK-178S can measure the temperature of multiple accessories at once, and the potential threats will be clearly displayed on the screen. It also has a wide range of measurement and photography features that can be adapted in a variety of environments. For example, the built-in high brightness lamp can easily find a suspicious object in the dark environment. This product also adopts a new generation of the sensor module and multiple color plate mode to ensure an excellent infrared resolution and improved performance.

Add To Cart

ZK-178S is an infrared thermal imager equipped with an audio alarm. It combines surface temperature measurement and real-time thermal image detection. The traditional infrared thermometers can only measure the temperature of each accessory one by one. When compared with the conventional infrared thermometers, ZK-178S can measure the temperature of multiple accessories at once, and the potential threats will be clearly displayed on the screen. It also has a wide range of measurement and photography features that can be adapted in a variety of environments. For example, the built-in high brightness lamp can easily find a suspicious object in the dark environment. This product also adopts a new generation of the sensor module and multiple color plate mode to ensure an excellent infrared resolution and improved performance.

Parameters
  • Sensor

    Uncooled Focal Plane

  • Temperature Range

    30°C ~ 45°C

  • Resolution

    0.1°C

  • Accuracy

    ±0.5°C @1m

  • Optimal Measuring Distance

    1m

  • Temperature Measurement Response Time

    ≤ 500ms (95% of reading)

  • Thermal Resolution

    80 * 60

  • Pixel Dimensions

    17μm

  • Palettes

    Black White, Red White, Blue White, Iron Red, Rainbow

  • Bandwidth of Infrared Spectroscopy

    8 ~ 14μm

  • Field of View (FOV)

    51° (H) * 38° (V)

  • Instantaneous Field of View (IFOV)

    11mrad

  • Thermal Imaging Sensitivity

    < 150mk

  • Frame Rate

    < 9Hz

  • Temperature Display

    Center temperature measurement and high temperature tracking (default)

  • Image Format

    BMP

  • Image Modes

    Therma

  • Temperature Measuring Point

    Central Point

  • Display Resolution

    320 * 240

  • PC Analysis Software (PC)

    Support

  • Data Communication

    Type-C USB

  • Auto Power Off

    Selectable (5min, 10min, 30min), 30min auto power off (default)

  • Battery Life

    ≥ 6 hours

  • Charging Time

    4 hours

  • Charging Voltage / Current

    5V/2A

  • Image Storage Location

    Micro SD card

  • Power

    A single Li-ion 3.7V/5000mAh 26650 battery

  • Display

    2.8" TFT LCD

  • Product Color

    Red and Gray

  • Dimension

    236 * 75.5 * 86mm

  • Standard Accessories

    Manual, Type-C USB cable, 16GB TF card

  • Standard Carton Gross Weight

    2.2kg
