Technocom
ZKTECO

Z8504NEQ-4P

||

Video Surveillance

||

Sold By :

Technocom IT Solution

0 Review(s)
Price : $5,000.00 /1

Color :

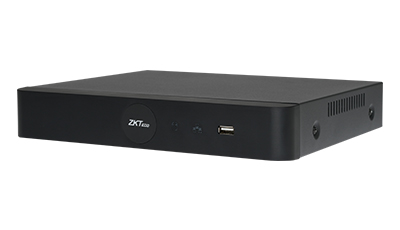

ZKTeco's Z8504NEQ-4P is a network video recorder (NVR) with 4 Power over Ethernet (PoE) port for IP camera connection. This NVR can deliver 4K resolution and supports H.265 decoding. Also, Z8504NEQ-4P has an user-friendly GUI which provides an intuitive shortcut operations including remote control,  security management and playback function. Z8504NEQ-4P NVR is compatible with ONVIF profile S protocol and it can easily connect to IP camera and various video management security platform. Z8504NEQ-4P NVR is a suitable solution for government organizations, banks and commercial projects.

Add To Cart

ZKTeco's Z8504NEQ-4P is a network video recorder (NVR) with 4 Power over Ethernet (PoE) port for IP camera connection. This NVR can deliver 4K resolution and supports H.265 decoding. Also, Z8504NEQ-4P has an user-friendly GUI which provides an intuitive shortcut operations including remote control,  security management and playback function. Z8504NEQ-4P NVR is compatible with ONVIF profile S protocol and it can easily connect to IP camera and various video management security platform. Z8504NEQ-4P NVR is a suitable solution for government organizations, banks and commercial projects.

Parameters

  • Model

    Z8504NEQ-4P

  • SYSTEM

  • Main Processor

    Multi-core embedded processor

  • Operating System

    Embedded LINUX

  • VIDEO AND AUDIO

  • Max IPC Input

    4CH

  • Two-way Talk

    Support

  • Audio Compression

    G.711u

  • LIVE VIEW

  • Display Split

    1/4 CH

  • Resolution

    8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) /
    1MP(1280*720) / D1(1024*768)

  • Live View Capability

    4CH@ MP(25/30fps)

  • RECORDING

  • Video Compression

    H.265 / H.264

  • Recording Resolution

    8MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

  • Max. Decoding Capability

    4CH@ MP(25/30fps)

  • Incoming Bandwidth

    40 Mbps

  • Bit Rate

    Main Stream: 16Kbps ~ 8192Kbps
    Sub Stream: 50Kbps ~ 700Kbps

  • Record Mode

    Schedule, Manual, Motion Detection, IVA Events Alarm

  • Record Interval

    1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

  • PLAYBACK AND BACKUP

  • Playback Channel

    4-channel real-time playback synchronously

  • Search Mode

    Time / Date, Alarm Types, IVA Search

  • Playback Function

    Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/ShowTime Bar, Backup, Snapshot, Full Screen

  • Backup Mode

    USB Device / Network Remote

  • IVA ALARM

  • Local IVA Functions

    Tripwire / Target Counting / Counting Statistics / Object Left / Lost / Intrusion

  • Regular Detection

    Motion Detection / Video Shelter / Video Loss

  • AI Search

    Support search target video by multiple intelligent conditions

  • NETWORK

  • Network Protocol

    TCP / IP, UDP, HTTP, DDNS, SMTP(SSL), DHCP, RTSP, NTP, P2P

  • Max. Online Users

    20

  • Web Browser

    Internet Explorer / Microsoft Edge

  • ANR

    Support (Automatic Network Replenishment)

  • Operation System

    Windows

  • Management Platform

    AntarVis 2.0

  • Mobile Application

    AntarView Pro+ (iOS & Android)

  • P2P Cloud Service

    Support

  • Interoperability

    ONVIF Profile S, SDK, CGI, AP

  • STORAGE & AUXILIARY INTERFACE

  • SATA Ports

    1 SATA Port, up to 12TB capacity

  • eSATA

    N/A

  • Raid 0 /1 / 5 / 6 / 10

    N/A

  • HDMI

    1*HDMI(4k)

  • VGA

    1920*1080/60Hz, 1280*1024/60Hz

  • Network Interface

    1 RJ-45 Port (10 / 100Mbps)

  • PoE Ports

    4 ports

  • Audio Input/Output

    0 / 1 output

  • USB

    3*USB 2.0

  • Alarm Input/Output

    N/A

  • RS-485

    N/A

  • POWER

  • Power Supply

    DC 48V / 1.5A

  • Power Consumption

    24W (without HDD)
    PoE ports: 15W for each output up to 250m transmission

  • GENERAL

  • Casing

    1U

  • Operating Temperature

    -10°C to 55°C / 14°F to 131°F

  • Operating Humidity

    0% to 90% RH (Non-condensing)

  • Dimensions (L*W*H)

    255 * 210 * 43 mm

  • Net Weight

    2.5 kg (without HDD)

  • Gross Weight

    3 kg (without HDD)
