Technocom
ZKTECO

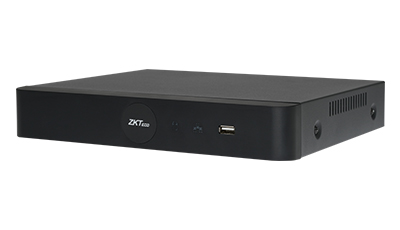

Z8504NEQ-S

||

Video Surveillance

||

Sold By :

Technocom IT Solution

0 Review(s)
Price : $0.00 /1

Color :

BioSense Series Network Video Recorder (NVR) is the back-end storage device of the new intelligent video surveillance  solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.


Embedded with advanced and powerful CPU hardware, and ZKTeco's graphical operation system, the BioSense Series Network Video Recorders are the ideal couple for the front-end BioSense Series IP Cameras. The NVR can support 24/7 continuously recording all video and intelligent alarm events generated by the front-end IP Cameras, and store safely  into hard drive by human & vehicle classification. After recording the video and intelligent alarm events, the NVR can allow the user to efficiently retrieve and playback the target video evidence, especially for the key types of targets such as humans, vehicles, and objects. This function enables the user to focus on the most effective video clips and alarm events.


The BioSense Network Video Recorders can greatly help to improve the efficiency and safety of the entire video  surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.

Add To Cart

BioSense Series Network Video Recorder (NVR) is the back-end storage device of the new intelligent video surveillance  solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.


Embedded with advanced and powerful CPU hardware, and ZKTeco's graphical operation system, the BioSense Series Network Video Recorders are the ideal couple for the front-end BioSense Series IP Cameras. The NVR can support 24/7 continuously recording all video and intelligent alarm events generated by the front-end IP Cameras, and store safely  into hard drive by human & vehicle classification. After recording the video and intelligent alarm events, the NVR can allow the user to efficiently retrieve and playback the target video evidence, especially for the key types of targets such as humans, vehicles, and objects. This function enables the user to focus on the most effective video clips and alarm events.


The BioSense Network Video Recorders can greatly help to improve the efficiency and safety of the entire video  surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.

Parameters

  • Model

    Z8504NEQ-S

  • SYSTEM

  • Main Processor

    Multi-core embedded processor

  • Operating System

    Embedded LINUX

  • Operation Interface

    Web browser & Local GUI

  • VIDEO AND AUDIO

  • Max IPC Video Input

    4CH

  • Two-way Talk

    Support

  • Audio Compression

    G.711u

  • Max Audio Input

    4CH by IPC

  • Third Party Camera Access

    ONVIF & RTSP

  • LIVE VIEW

  • Display Split

    1/4 CH

  • Resolution

    8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) /1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768)

  • Live View Capability

    1CH@8MP(25/30fps) / 4CH@D1(25/30fps)

  • RECORDING

  • Video Compression

    H.265 / H.264

  • Recording Resolution

    8MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

  • Max. Decoding Capability

    4CH@8MP(25/30fps)

  • Incoming Bandwidth

    40 Mbps

  • Outgoing Bandwidth

    40 Mbps

  • Stream Type

    Video, Video & Audio

  • Bit Rate

    Main Stream: 16Kbps ~ 8192Kbps
    Sub Stream: 50Kbps ~ 700Kbps

  • Storage Method

    Local hard drive and network

  • Record Mode

    Schedule, Manual, Motion Detection, IVA Events Alarm

  • Record Interval

    1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

  • PLAYBACK AND BACKUP

  • Playback Channel

    4CH synchronously playback

  • Search Mode

    Time / Date, Alarm Types, IVA Search

  • Playback Function

    Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

  • Backup Mode

    USB Device / Network Remote

  • INTELLIGENT VIDEO ANALYTICS

  • IVA by Camera

    Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left

  • IVA by Device(Number of Channels)

    PC

  • Local IVA Functions displaying

    Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left

  • IVA by Camera (Number of Channels)

    4

  • IVA ALARM

  • Smart IVA Alarm

    Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left

  • Regular Detection

    Motion Detection / Video Shelter / Video Loss

  • Anomaly Alarm

    HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict

  • Alarm Linkage Actions

    Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center

  • Smart Search

    Support smart search out target video by human and vehicle classification filtering

  • NETWORK

  • Network Protocol

    TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket, P2P

  • Max. Online Users

    20

  • Web Browser

    Google Chrome / Microsoft Edge / Firefox / Safari / Opera

  • Operation System

    Windows

  • Management Platform

    ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0

  • Mobile Application

    AntarView Pro+ (iOS & Android)

  • P2P Cloud Service

    Support

  • Interoperability

    ONVIF Profile S/G, SDK, CGI, API

  • STORAGE & AUXILIARY INTERFACE

  • SATA Ports

    1 SATA Port, up to 8 TB capacity

  • eSATA

    N/A

  • Raid 0 /1 / 5 / 6 / 10

    N/A

  • HDMI

    1*HDMI (4K)

  • VGA

    1920*1080 / 60Hz, 1280*1024 / 60Hz

  • Network Interface

    1 RJ-45 Port (10/100Mbps self adaptive)

  • PoE Ports

    N/A

  • Standard

    N/A

  • USB

    3*USB 2.0

  • Audio Input/Output

    0 /1 output

  • Alarm Input/Output

    N/A

  • RS-485

    N/A

  • RS-232

    N/A

  • POWER

  • Power Supply

    DC 12V/2A

  • Power Consumption

    ≦ 24W (without HDD)

  • GENERAL

  • Casing

    1U

  • Operating Temperature

    -10°C to 55°C / 14°F to 131°F

  • Operating Humidity

    0% to 90% RH (Non-condensing)

  • Storage Humidity

    30% to 80% RH (Non-condensing)

  • Operating Altitude

    3,000 m (9,842.52 ft)

  • Installation

    Desktop / Cabinet mount

  • Dimensions(L*W*H)

    255 * 210 * 43 (mm)

  • Net Weight

    2.8kg (without HDD)

  • Gross Weight

    3.3kg (without HDD)

  • Certifications

    ISO14001, ISO9001, CE, FCC
